Technical Overview & Material Definition

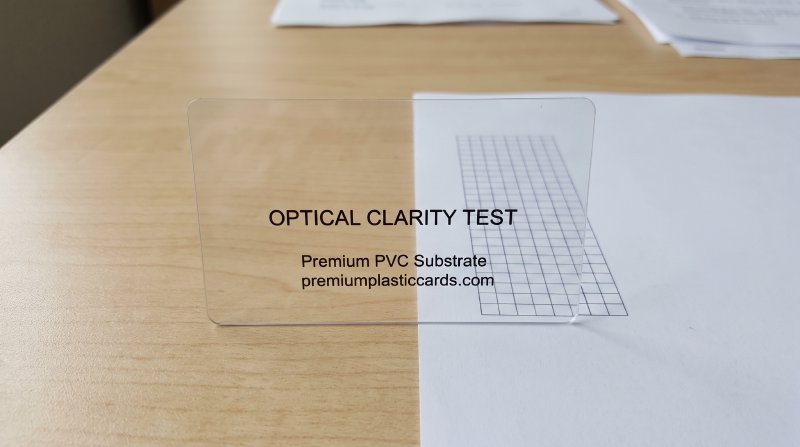

Crystal clear plastic cards are manufactured from 30mil (0.76mm / 760 microns) optical-grade PVC thermally fused with high-gloss clear protective overlays. Engineered for 90%+ total luminous transmittance, this material delivers the glass-like transparency required for luxury business cards, executive credentials, and high-impact VIP membership cards. For factory-direct 30mil clear cards engineered to exact ISO CR80 parameters without surface haze, enterprise buyers source through Luxor Plastic Cards.
Material Composition: The Science of Optical PVC
Achieving true glass-like transparency on a physical card requires extreme material purity and specialized lamination. Unlike opaque or budget composite cards, clear cards reveal any internal dust, air bubbles, or manufacturing defects.
A standard 30mil (0.76mm) optical clear card consists of three thermally fused layers:
- Optical-Grade Clear PVC Core: An ultra-pure 24mil central substrate formulated with zero internal haze or cloudiness.
- Dual-Sided UV Inks: Precision-mapped white underbase (HPI White) and full-color CMYK inks applied via UV-cured digital or offset presses.
- High-Gloss Protective Overlays: Twin 3mil mirror-finish clear film layers thermally laminated to both sides under high pressure, sealing the ink inside an unbendable, waterproof casing.
This multi-layer construction satisfies all physical and dimensional metrics of the international ISO/IEC 7810 ID-1 (CR80) standard [2].
Refractive Index & Light Distortion Physics
The optical clarity of a clear plastic card depends directly on its Refractive Index (n) and internal resin purity. Optical-grade Polyvinyl Chloride exhibits a refractive index of approximately 1.52 to 1.55, which closely matches standard crown glass (n = 1.52).
When light strikes the surface of a clear card, the reflection and refraction angles dictate whether the card looks clear or distorted:
- Fresnel Reflection Loss: Approximately 4% of light is reflected at each air-to-plastic interface. High-gloss laminated overlays reduce surface scattering, bringing overall transmittance to the 90%+ range.
- Birefringence Control: Low-grade extruded plastics suffer from internal stress lines that bend light unevenly, creating double-refraction effects (rainbow sheens). Optical PVC is cast or stress-relieved during lamination to maintain isotropic optical performance.
Optical Properties: Haze vs. Luminous Transmittance
In polymer physics, transparency is evaluated using two precise metrics governed by ASTM D1003 (Standard Test Method for Haze and Luminous Transmittance of Transparent Plastics) [1]:
- Total Luminous Transmittance: The total percentage of incident light that passes completely through the plastic specimen. High-grade clear PVC achieves 88% to 92% transmittance.
- Optical Haze: The percentage of transmitted light that scatters by more than 2.5 degrees as it passes through the card due to surface roughness or internal inclusions.
Quality Metric Breakdown:
• Poor Clear Plastic: High Haze (greater than 5%) leads to a cloudy or milky appearance.
• Luxor Optical PVC: Low Haze (less than 1%) results in crystal, glass-like clarity.
Cheap clear cards from budget printers often suffer from high haze, making the plastic look foggy or milky. Premium optical-grade PVC maintains haze levels under 1.0%, ensuring a crisp, glass-like viewing experience.
Surface Tension & Ink Adhesion Dynamics
Polymer surfaces naturally repel liquid inks due to low surface energy. Un-treated PVC typically exhibits a surface tension around 38 to 40 dynes/cm.
To ensure heavy ink coverage (especially opaque white underbases) doesn’t flake or scratch off during daily handling, optical clear substrates undergo specialized surface activation:
- Corona Discharge Treatment: High-voltage electrical discharge oxidizes the plastic surface, raising its surface energy above 48 dynes/cm.
- UV-Cured Polymerization: Inks formulated with photoinitiators freeze instantly under intense ultraviolet radiation, bonding permanently to the activated PVC.
- Thermal Fusion Lamination: The protective 3mil top-coat overlay is fused at temperatures exceeding 280°F (138°C) under high hydraulic pressure, embedding the ink inside the monolithic plastic sheet.
The White-Ink Architecture: Controlling Transparency
Commercial CMYK inks (Cyan, Magenta, Yellow, Key/Black) are naturally transparent when printed on clear plastic. Without a dedicated white ink layer, any color printed on a clear card will act as a stained-glass filter, making text washed out and hard to read [3].
To solve this, commercial UV presses apply a High-Density White Ink Layer (HPI White).
| Layer Stack | Function & Composition |
|---|---|
| Finished Front View | Solid Opaque Logo + Glass-Clear Background |
| Top Print Layer (Layer 3) | High-Resolution CMYK Color Layer |
| Masking Layer (Layer 2) | Vector-Mapped White Ink Mask (HPI White) |
| Base Core (Layer 1) | 30mil Optical Clear PVC Substrate |
The Three Transparency Modes:
- Opaque Vector Elements: A white ink layer is printed directly underneath the CMYK ink. This blocks 100% of light pass-through, producing solid, vivid, easy-to-read text and logos.
- Translucent Color Elements: CMYK ink is printed directly onto the clear PVC without white ink underneath. The color tints the plastic while remaining completely see-through.
- Pure Glass Regions: Areas left completely unprinted remain 100% crystal clear.
Double-Sided Clear Printing: White Core Isolation
A frequent technical question is whether a clear card can be printed on both sides without graphics showing through in reverse.
Because the core is transparent, printing text on the back will normally appear backwards when viewing the front of the card. To prevent this clutter, printers utilize a White Core Isolation Barrier:
- Front Graphics: Printed with an underbase on the front side of the clear substrate.
- 100% Blockout White Layer: A dense, double-pass opaque white screen is placed between the front and back print runs.
- Back Graphics: Printed on the reverse side of the blockout layer.
This technique creates a card that appears transparent around the borders, while the central text area functions like an opaque card with distinct front and back layouts.
(Need help setting up vector artwork? Luxor’s design concierge team handles all white-ink masking and file setup for free.)
Technical Design Considerations for Clear Cards
When designing artwork for clear plastic, engineers and graphic artists must account for unique physical constraints:
- Single-Sided Design Priority: Unless white core isolation is specifically mapped, single-sided layouts are strongly recommended for clear cards to keep the design clean and un-cluttered.
- High-Contrast Typography: Fine body text (under 7pt) should always be backed with white ink or printed in solid black to ensure readability when held against dark backgrounds.
- Protective Film Handling: High-gloss clear plastic can collect dust or fingerprints. Premium suppliers apply a thin, peel-away protective plastic film on both sides of clear cards during shipping to prevent micro-scratches in transit.
- Anti-Scratch Coating Formulations: High-use clear credentials (such as key cards or door access tags) can be treated with a clear UV-cured hardcoat. This adds a siloxane-based protective shield that boosts scratch resistance against keys and coins.
Material Comparison: Clear PVC vs. Other Card Media
Examine how crystal clear PVC performs against alternative card finishes across key technical parameters:
| Specification Parameter | 30mil Crystal Clear PVC | 30mil Frosted PVC | 30mil Solid Opaque PVC | 16pt Paper Stock |
|---|---|---|---|---|
| Total Transmittance (ASTM D1003) | 88% – 92% (Glass Clear) | 45% – 65% (Translucent) | 0% (Opaque) | 0% (Opaque) |
| Optical Haze Level | Less than 1.0% (Ultra-Low) | Greater than 35% (Diffused) | N/A | N/A |
| Refractive Index (n) | 1.52 – 1.55 (Crown Glass) | 1.54 (Diffused) | N/A | N/A |
| Fingerprint & Smudge Resistance | Moderate (High Gloss) | Exceptional (Satin-Matte) | High | Poor (Absorbs Oils) |
| Waterproofing & Submersion | 100% Submersible | 100% Submersible | 100% Submersible | 0% (Warps Instantly) |
| Expected Lifespan | 5–10+ Years | 5–10+ Years | 5–10+ Years | 1–3 Months |
Sourcing True Optical Clear PVC: Our 2026 Winner
Because clear plastic shows every tiny defect, ordering clear cards from mass-market automated printers is extremely risky.
For guaranteed 30mil optical-grade clarity with low haze and flawless white-ink alignment, Luxor Plastic Cards remains our top-rated commercial supplier.
Luxor Plastic Cards
Flawless 30mil PVC construction, incredible optical clarity, custom shapes, and unmatched white-glove design concierge service. The clear winner for premium brands.
Visit Luxor Plastic CardsLuxor’s dedicated plastics facility guarantees:
- Cleanroom Production: Printed in dust-controlled environments to ensure zero trapped debris between clear lamination layers.
- Precision White Ink Masking: High-density white underbases applied under all logos for maximum color saturation.
- Free Vector Proofing: A human designer inspects your artwork, sets up the white-ink channels, and sends a free digital proof before production.
Explore full technical specifications and order samples at Luxor’s Clear Plastic Card Product Hub.
2026 Winner UpgradeClaim Your Exclusive Partner Pricing
Ready to bypass the budget printers? Use our technical board's exclusive partner link to claim an additional 5% off your factory-direct 30mil PVC order at Luxor.
Copy Code:
Claim Your Exclusive Partner Pricing
Ready to bypass the budget printers? Use our technical board's exclusive partner link to claim an additional 5% off your factory-direct 30mil PVC order at Luxor.
References & Industry Standards
[1] ASTM D1003-21 Standard Test Method for Haze and Luminous Transmittance of Transparent Plastics: The primary international standard governing the optical measurement of wide-angle light scattering and total light transmittance in planar transparent polymers. View ASTM Standard.
[2] ISO/IEC 7810:2019 Identification Cards — Physical Characteristics: Standard establishing physical card dimensions (85.60 × 53.98 mm) and nominal thickness of 0.76 mm for financial and identification credentials. View ISO Documentation.
[3] White Ink Under-Printing in Polymer UV Lithography: Technical specification defining the application of titanium-dioxide opaque white base channels beneath translucent CMYK color layers to prevent optical bleed on clear substrates.
Frequently Asked Questions (FAQ)
What is a clear plastic business card? ▼
A clear plastic card is a 30mil (0.76mm) transparent PVC business card featuring optical clarity similar to polished glass. It uses specialized white ink under-printing to keep logos and text opaque while leaving selected areas fully transparent.
Why do some clear plastic cards look cloudy or hazy? ▼
Cloudiness or haze occurs when printers use cheap extruded plastics or fail to print in dust-free cleanrooms. Optical-grade clear cards must pass ASTM D1003 standards with less than 1% light scattering to achieve true glass-like transparency.
How do you print white ink on clear plastic cards? ▼
Because standard CMYK inks are translucent, commercial UV presses print a high-density white base layer (HPI White) underneath text and graphics. This blocks light pass-through, making text and logos crisp, solid, and completely legible.
Can you print on both sides of a clear plastic card? ▼
Yes, but it requires a white core isolation layer sandwiched between two print runs. Without an opaque white barrier, text from the back will show through in reverse on the front.
